CHQ Wire

Materials making coupling parts such as bolts, nuts and screws for use in automobiles, electronic products, construction, etc.

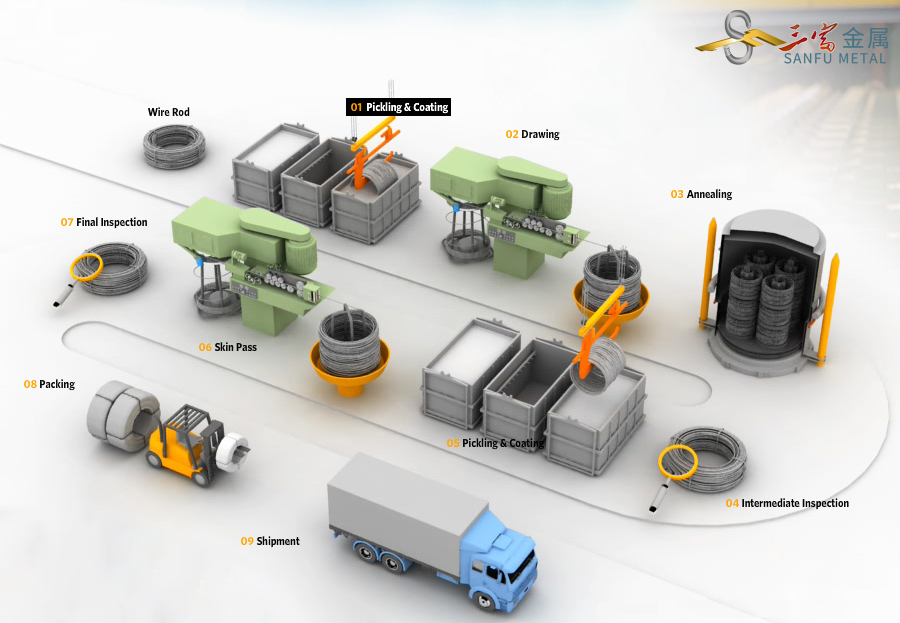

1.Pickling&Coating

Pickling: in this process, acid is used to remove high temperature oxidized scales that are created on the metal surface during wire rolling, as well as rust and attached impurities that are created while the material is kept.

Coating: in this process, a synovial layer on the metal surface is formed to prevent direct contact between the tool and the material in the drawing process and cold forging process with the goal of workability improvement and decarburization prevention during annealing.

2.Drawing

In this process, the pickled and coated material is passed through dies to draw wire with required wire diameters. In this process, the pearlite structure is segmented through cold processing, to facilitate spheroidizing during annealing and to adjust wire drawing reduction ratios with the goal of meeting the required machine properties after wire drawing.

3.Annealing

In this process, pearlite, the raw material (wire rod) structure, is converted into a stable spherical carbide with the goal of lowering its strengths and expanding its ductility, thus improving transmutability during cold forging.

4.Intermediate Inspection

In this process, the produced product is being inspected to assess whether it is ready for post-processes.

5.Pickling&Coating

Pickling: in this process, acid is used to remove high temperature oxidized scales that are created on the metal surface during wire rolling, as well as rust and attached impurities that are created while the material is kept.

Coating: in this process, a synovial layer on the metal surface is formed to prevent direct contact between the tool and the material in the drawing process and cold forging process with the goal of workability improvement and decarburization prevention during annealing.

6.Skin Pass

In this process, the pickled and coated material is passed through dies to draw wire with required wire diameters. The precise wire diameter quality is secured, wires curved during surface refinement treatment and annealing are straightened and wires are given appropriate strength with the goal of producing a finished product in this process.

7.Final Inspection

In this process, a finished product is inspected to assess whether the product meets required specifications.

8.Packing

In this process, the product is packed to prevent damaging, binded by unit according to the request specifications and standard packaging method prior to shipping.

9.Shipment

Other Technical Details

Dimensional range：Standard dimensions are 0.50 mm - 49.0 mm

Diameter tolerances：Tightest diameter tolerances EN 10278 (h8, h9, h10, h11)

Surface：

· Phosphate-free

· Phosphated

· Finally phosphate coated, soap or lime coating

· Bright drawn

Specifications:
